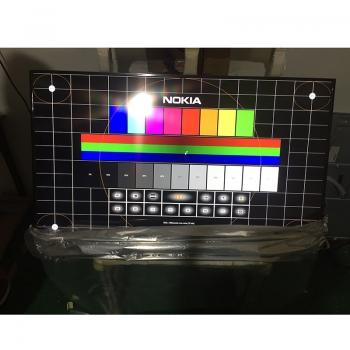

LG 4K 49 inch 500 nit 60Hz LD490EGE-FHM1 - LCD panel manufacturers
- Model : LD490EGE-FHM1
- Size : 49 inch
- Resolution : 3840(RGB)×2160 [UHD]
- Brightness : 500 cd/m² (Typ.)
- Application : Digital Signage
The LD490EGE is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode. It has a 48.50 inch diagonally measured active display area with QWUXGA resolution (2160 vertical by 3840 horizontal pixel array). Sub-pixels are constructed with Red, Green, Blue and White. Each pixel is divided into RGB or WRG or BWR or GBW or dots which are arranged in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot. Therefore, it can present a palette of more than 1.07Bilion colors.
It has been designed to apply the 10-bit 8 Lane V-by-One interface. It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.
|Part Number:||LD490EGE-FHM1||Lamp Type:||IPS, Normally Black, Transmissive|
|Size:||49 inch||Signal Interface:||51 pins V-by-One 8 lane , Connector|
|Resolution:||3840(3)×2160 [UHD]||Surface:||Antiglare (Haze 1%), Hard coating (3H)|
|Contrast Ratio:||1100:1 (Typ.) (TM)||Storage Temp.:||0 ~ 50 °C|
|Brightness:||500 cd/m² (Typ.)||Operating Temp.:||-20 ~ 65 °C|
|Viewing Angle:||89/89/89/89 (Typ.)(CR≥10)||Weight:||10.1/10.6Kgs (Typ./Max.)|
|Package quantity in one Pallet||22 pcs|
|Pallet size||1300 mm(W) X 1140 mm(D) X 825 mm(H)|
|Touch panel||size, silk print, touch signal connector||MOQ is different based upon different sizes|
|Cover lense||hardness, thickness, sizes, shape, color||<21.5'', 200pcs
|Bonding||air bonding or optical bonding||NO|
|Boards||AD board with different signal connectors
PC boards with different systems and functions
for different application
Customized logo added
|Cables||Signal connector PIN ID
You Many Also Like?
|Panel Model||Panel Brand||Size||Resolution||Frequency||Brightness|
For choose more suitable screen or more information about product please click to contact us!
Why Choose Us?
1. Large Stock System:
We have our own warehouses in Shenzhen, and Hongkong, with comprehensive supplying network of LCD panels & open cells for LG, Samsung, AUO, CMO, and other brands.
2. Comprehensive Panel sources.
We have strong ability and system to seek for our customers the panels which have been end of production for a long time.
3. Professional acknowledgment of LCD panels industry to provide customers with effective advice.
We have been in original LCD panels industry for more than 10 years and know the main brands' LCD panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
4. During the warranty, if panels’ electronic functions problems occur, customers provide the photos to illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s electronic problem, we will take back the panels with problem and replace it with new panels. All freight will be taken by us.
1. All panels’ grade is promised strictly same as original factory’s IIS standard.
2. All brand-new Panels’ electronic functions are guaranteed during warranty period of 1 year beginning with the invoice date.
3. We can do OEM of the High Brightness LCD module as required.
Q1: Any discount?
A1: We will try our best to provide you the competitive price and good service.
Q2: Are you a manufacturer?
A2: Yes, we are a manufacturer of full HD LCD panel.
Q3: What about the warranty of the products?
A3: 12months after delivery. During the warranty, if panel's original factory problems occur, we will take back the panels with problem and replace it with new panels.
All freight will be taken by us.
Q4: What about the payment terms?
A4: T/T, Paypal, or Western Union
Q5: Can you accept OEM or ODM orders?
A5: Yes, we are a LCD panel manufacturer, with professional structural,
QC and technical engineers provide OEM or ODM service.
Q6: How to ensure the safety of the screen in transportation?
A6: In order to keep screen in safe, plywood wooden box will be used to pack
the TFT LCD Display Module.
Q7: If I need customized capacitive touch screen, what can you do for me?
A7: Confirm your requirements (size, resolution, brightness, application, operation
environment), after information confirmed → design drawing → produce sample → sample test, QC report → prepare instruction manual → ship.
