15.6 inch touch screen monitor 10 point FHD 1000 nit - JFC156HB10TM
10 point 15.6 inch touch screen monitor

15.6 inch touch screen monitor 10 point FHD 1000 nit - JFC156HB10TM

Product Specification:
  • Model : JFC156HB10TM
  • Size : 15.6 inch
  • Resolution : 1920 * 1080
  • Brightness : 1000 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Industrial & Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download

15.6” High Brightness Touch Open-frame



15.6 inch touch screen monitor

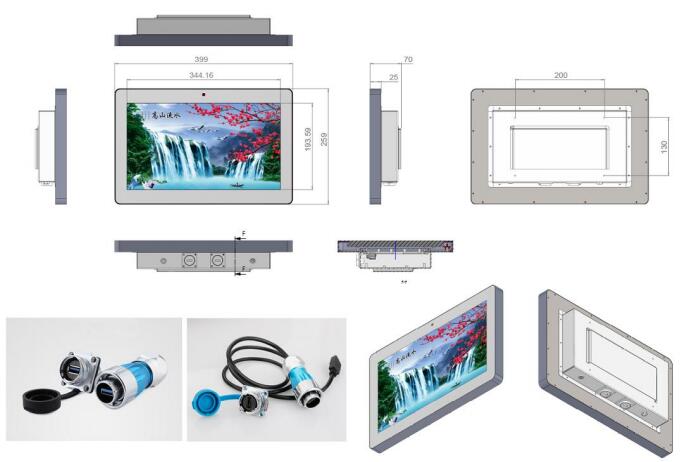

Product Picture



JFC 15.6 inch touch screen monitor





Product Brief Introduction





JFC156HB10TM commercial capacitive touch monitor with high brightness. Resolution: 1920*1080.

Brightness: 1000NIT (TFT CENTER WITHOUT PCAP)

Touch IC: EETI industrial grade, with reliable and stable performance

Bonding Method: Full Optical Bonding

The front tempered glass adopts AR + AG processing technology. The structural design is compatible with a variety of installation methods, and there are a wide rang of installation and application scenarios for customers.

Main control: JFC2K2483T.V5.



Specifications

Product Name

High brightness touch open-frame

Contrast Ratio​

700:1(TYP)

Product Model

JFC156HB10TM

Response Time

8ms /16ms(Raising+Falling)

Screen Size​

15.6 inch

Viewing Angle

80(Left)/80(Right)/70(Upper)/70(Down)

Active Area

344.16(H)×193.59(V)mm

Input Signals

VGA+HDMI (IP65)

Pixels H×V​

1920(H)×1080(V)

Operating Temperature & Humidity



-25 ~ +80℃,10~90 %RH

Pixel Pitch

0.17925×0.17925mm

Storage Temperature & Humidity​

-30 ~ +85℃,10~90 %RH

Support Color​

16.7M(RGB 8-Bit)

Power Supply

DC12V/5A(Φ=2.1)

Brightness

1000±50 cd/m2

Typical Power Consumption

<40W

Touch Screen

USB A Connector,DC5V Input,10 Dots AR Capacitor Touch Screen

MTBF

IP65+6H

Installation Method​

200×130mmVESA;Left+ Right+ Upper+ Down M4 Reserve hole

Product Acessories​

HDMI*1 extension cable: 1000mm; VGA*1 extension cable: 1000mm; Adapter, with power cable*1 (American Standard): 1000mm ( IP65)
