10.1 inch LCD Touch Screen Module - JFC101CFYS.V0
10.1 inch optical bonding LCD touch screen module

10.1 inch LCD Touch Screen Module - JFC101CFYS.V0

Product Specification:
  • Model : JFC101CFYS.V0
  • Size : 10.1 inch
  • Resolution : 1280*800
  • Brightness : 1000 cd/m2 (Typ.)
  • Application : Industrial
Inquiry
  1. Product Details
  2. Download
JFCVision 10.1 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 10.1inches (diagonal)
Resolution: 1280*800
Active Area: 216.96 × 135.6 mm (H×V)
Brightness: 1000 cd/m2 (Typ.)
View Angle: 85/85/85/85 (Typ.)(L/R/U/D)
Contrast Ratio: 1300:1
Interface: LVDS (1 ch, 6/8-bit) , 40 pins
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 3.3V (Typ.)
LED driver: Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 232.46*149.98 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EEIT
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  -20 ~ 60 °C
Storage Temperature  -30 ~ 70 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

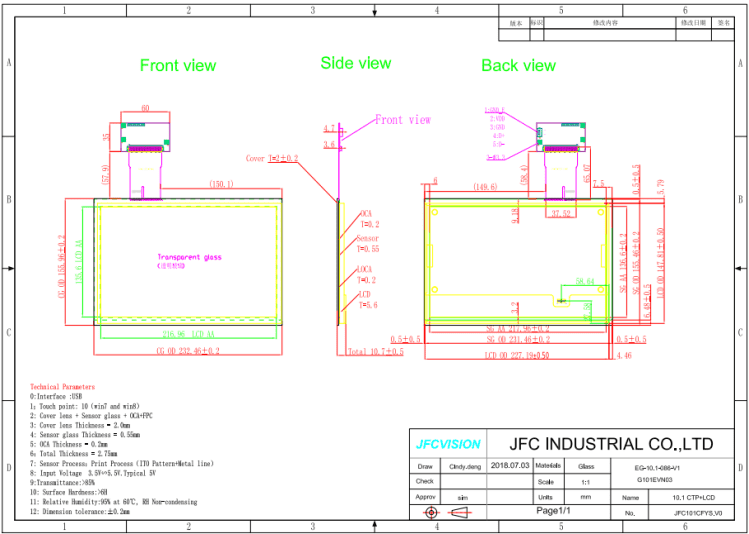

Mechanical Drawings:

Mechanical Drawings of 10.1 inch Touch Screen Module

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
