Capacitive Touchscreen Display - JFC400CFSS.V1
Capacitive Touchscreen Display
40 inch capacitive Touchscreen Display

Capacitive Touchscreen Display - JFC400CFSS.V1

Product Specification:
  • Model : JFC400CFSS.V1
  • Size : 40 inch
  • Resolution : 1920(RGB)×1080   [FHD]
  • Brightness : 480 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Recommend
  3. Download
JFCVision 40 inch LCD Touchscreen Features a Slim Design
TFT LCD Panels
Size: 40 inches (diagonal)
Resolution: 1920(RGB)×1080   [FHD]
Active Area: 878.112*485.352mm (H*V)
Brightness: 480 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 4800:1
Interface: LVDS (2 ch, 8-bit) 51 pins
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 12.0V (Typ.)
LED driver: Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 940*555 mm
Active Touch Area: Same as LCD Panel's active area
Touch IC: /
Touch Control Interface: COB
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

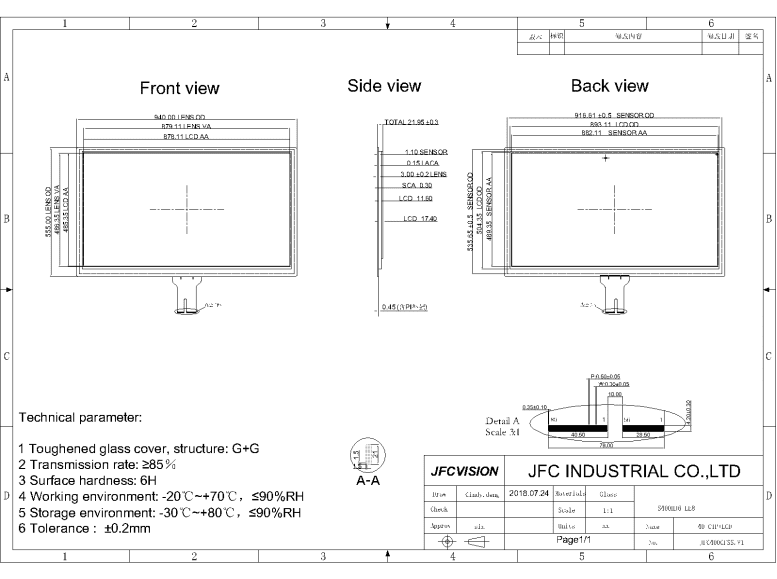

Mechanical Drawings:

Capacitive Touchscreen Display Panel

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
