Full Optical Bonding FHD 1500 nits High Brightness Screen - JFC320CFSS.V0.1
high brightness capacitive touch screen manufacturers

Full Optical Bonding FHD 1500 nits High Brightness Screen - JFC320CFSS.V0.1

Product Specification:
  • Model : JFC320CFSS.V0.1
  • Size : 32 inch
  • Resolution : 1920(RGB)×1080 , FHD
  • Brightness : 1500 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 31.5 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 31.5 inches (diagonal)
Resolution: 1920(RGB)×1080 , FHD
Active Area: 476.64×268.11 mm (H*V)
Brightness: 1500 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1400:1
Interface: LVDS (2 ch, 8-bit) , 51 pins
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 12.0V (Typ.)
LED driver: included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 777.12*470.60 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

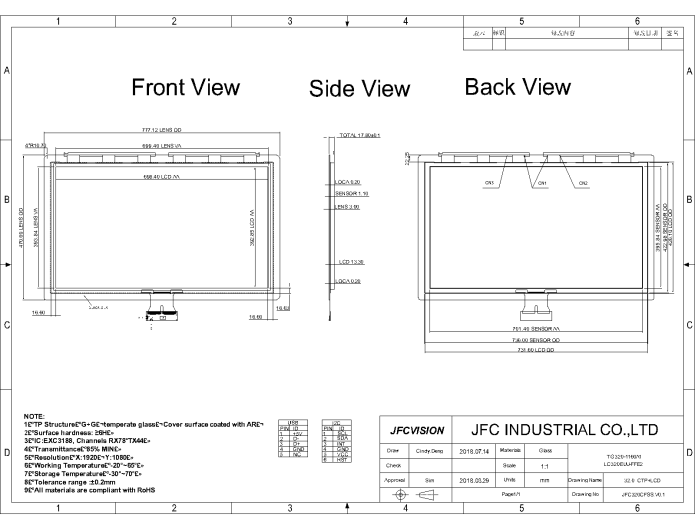

Mechanical Drawings:

32 high brightness screen of Mechanical Drawings

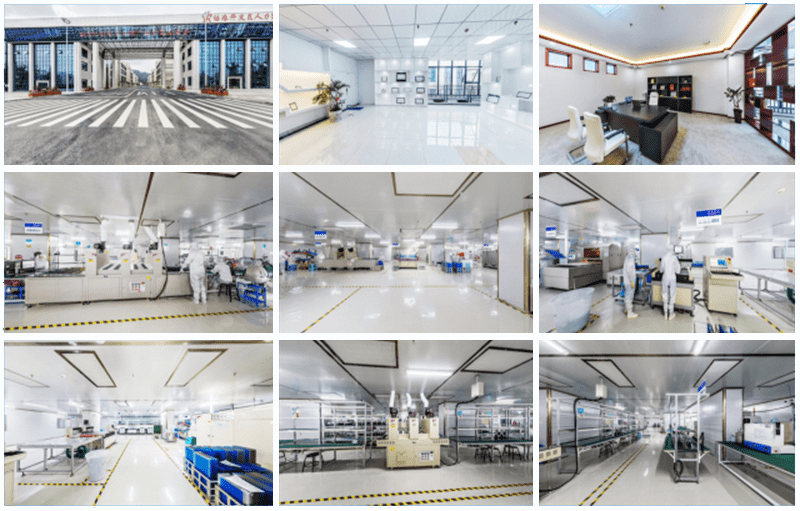

high brightness screen of Production Process

32 inch high brightness screen of 3D Designing

32 inch high brightness screen Applications

32 inch high brightness screen for Commercial

32 inch high brightness screen Manufacturer

32 inch high brightness screen Manufacturer
