Professional 28 inch 1500 nits 3M Touch Screen
Air Bonding 3M Touch Screen

Professional 28 inch 1500 nits 3M Touch Screen

Product Specification:
  • Model : JFC280CMSS.V0
  • Size : 28 inch
  • Resolution : 1920(RGB)×360
  • Brightness : 1500 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Industrial & Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 28 inch Bar LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 28 inches (diagonal)
Resolution: 1920(RGB)×360
Active Area: 699.84×131.22 mm (H*V)
Brightness: 1500 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1200 : 1 (Typ.)
Interface: LVDS (51Pin)
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 12.0V (Typ.)
LED driver: cluded
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 732.00*165.00 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

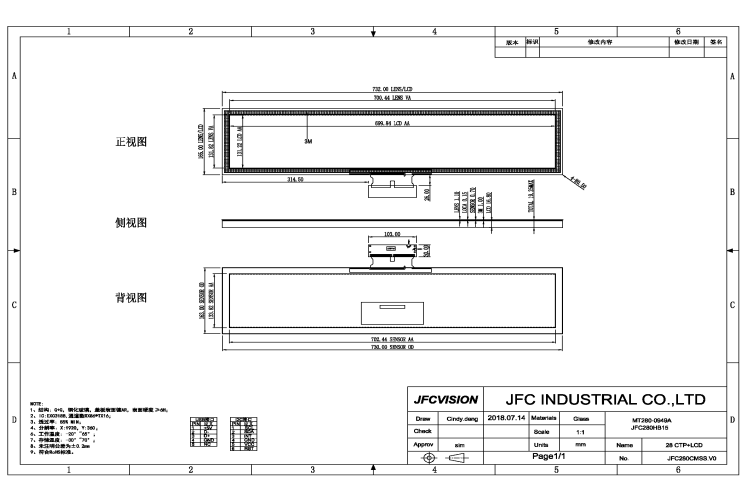

Mechanical Drawings:

Mechanical Drawings Of TFT Capacitive Touchscreen

Customization Services
Item Customization MOQ
Touch panel size, silk print, touch signal connector MOQ is different based upon different sizes
Cover lense hardness, thickness, sizes, shape, color <21.5'', 200pcs
≥21.5'', 100pcs
≥32'', 50pcs
LCD Panel Brightness NO
Bonding air bonding or optical bonding NO
Boards AD board with different signal connectors
PC boards with different systems and functions
for different application
Customized logo added
NO
Cables Signal connector PIN ID
Length
NO



  How do we work

  JFCVision's project customization process, professional capacitive touch screen display technology solution

TFT Capacitive Touchscreen Solutions

  Full Optical Bonding &  Air bonding

  JFCVision can produce air bonding and optical bonding and can recommend the most suitable one for you according to your needs.

Full Optical Bonding:

Advantages:

1.Make sure absolute vacuum between LCD panel and Touch Panel,

no ash, no vapor, no vapor condensation caused by outdoor temperature.

2.Improve capacitive touch screen resolution and brightness in Sunshine

3.Protect the capacitive touch screen surface from turning yellow caused by sunshine,

anti-shock, anti-shake, to improve display's lifetime in outdoor usages.

4.The structure is very slim, with nice appearance.

Application: Outdoor projected capacitive touch screen

Air bonding:

Advantages:

1.Simple process

2.Shorter delivery date

3.The structure is very slim, with nice appearance.

4.Competitive price for finished product.

Application: For clear, common, and static indoor environment









Air Bonding Touch Solutions

JFCVision Air Bonding Touch Solutions

  Cover Lens Surface Treatment

  JFC can perform AG, AR and AF processing on the surface of the capacitive touch screen glass cover according to customer requirements.

AG(Anti-glare):

Improve display effect:

1.Can reduce the interference of ambient light,

2.improve viewing angle and brightness of the display

 3.Reduce the reflection of the screen

 4.Coating technology making display panels easy on the eye by controlling light reflection

AG Custom Service - Air Bonding Touch Solutions

AR Custom Service - TFT Capacitive Touchscreen

AR (Anti-reflection):

1.Reduce the reflection and increase transmission on a surface      compared to the same surface in a blank state.

2.Make the image clear, the color is more beautiful, saturated

  AF(Anti-fingerprint):

1.Surface coated with anti-fingerprint oil

2.The anti-fingerprint effect means that fingerprints on the surface become very slightly.

3.Water, oil, and other liquids are difficult to adhere to the surface.

Application: touch monitor in resturant, outdoor touch display, ATM, POS system, etc.

AF Custom Service - TFT Capacitive Touchscreen



  Capacitive Touch Screen Accessories

  18.4-28 inch projected capacitive touch screen accessories, JFCVision can provide you with a complete solution

Board  Name Accessories Picture Cable  Name Accessories Picture
AD board:



AD Board - TFT Capacitive Touchscreen

Inverter Cable

Inverter Cable - TFT Capacitive Touchscreen

Inverter:

Inverter - TFT Capacitive Touchscreen

LVDS Cable

LVDS Cable - TFT Capacitive Touchscreen

Keyboard:

Keyboard - TFT Capacitive Touchscreen

Backlight Cable

Backlight Cable - TFT Capacitive Touchscreen

 IR:

IR - TFT Capacitive Touchscreen

Keyboard Cable

Keyboard Cable - TFT Capacitive Touchscreen

   AD board:

    Supply drive solution to the LCD panel

    Interface: HDMI, DVI, VGA, USB, etc.



    Language:

    Chinese, English, French, German, Russian, Spanish, etc.



    Inverte:

    Stabilize the current and voltage

Air Bonding Touch Solutions

  Application

28 inch capacitive touch screen are mainly used in retail, POS, commercial display, outdoor brightness touch screen and medical, etc

28 inch Air Bonding Tocuh Screen

  Factory Overview

  JFCVision is factory specialized in capacitive touch screen production development and marketing for more than 10 years

Air Bonding Touch Screen Factory

  Transport Packaging

28 inch capacitive touch screen we use EPS plate and wooden box for safe packaging to ensure product safety


Bubble Pack

Bubble Pack - Air Bonding Touch Screen

Carton

Carton - Air Bonding Touch Screen



Waterproofing Film

(On the surface of the
wooden box)

Waterproofing Film - Air Bonding Touch Screen

EPS Plate

EPS Plate - Air Bonding Touch Screen

Wooden Box

Wooden Box - Air Bonding Touch Screen

Fragile Warning Label

Fragile Warning Label - Air Bonding Touch Screen

Packaging process video

28 inch air bonding touch screen packaging process.

Secure packaging ensures the security of the 28 inch air bonding touch screen



  Warehouse Overview

  JFCVision's long-term stable supply of 10.1-65 inch capacitive touch screen
