4K Touchscreen, Touch Screen Module - JFC238CMYY.V0.
23.8 inch 4K Touchscreen

4K Touchscreen, Touch Screen Module - JFC238CMYY.V0.

Product Specification:
  • Model : JFC238CMYY.V0
  • Size : 23.8 inch
  • Resolution : 3840(RGB)×2160 , UHD
  • Brightness : 350 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Industrial & Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 23.8 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 23.8 inches (diagonal)
Resolution: 3840(RGB)×2160 , UHD
Active Area: 527.04*323.4 mm (H*V)
Brightness: 350 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1000:1
Interface: LVDS (51Pin+41Pin*3)
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 10.0V (Typ.)
LED driver:  Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 591.16*358.69 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

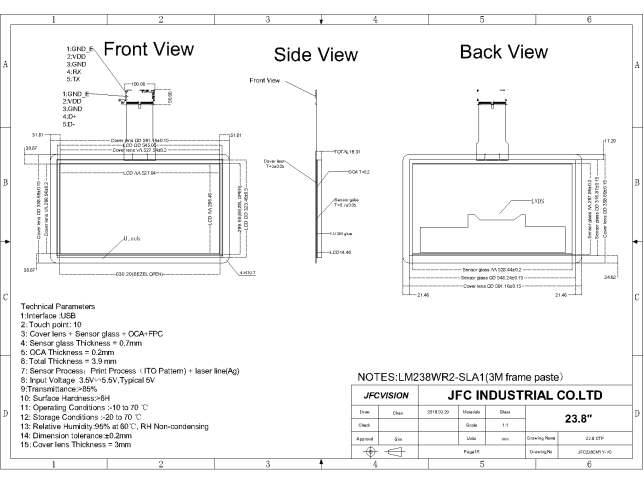

Mechanical Drawings:

Mechanical Drawings - 4k Touchscreen

Customization Services
Item Customization MOQ
Touch panel size, silk print, touch signal connector MOQ is different based upon different sizes
Cover lense hardness, thickness, sizes, shape, color <21.5'', 200pcs
≥21.5'', 100pcs
≥32'', 50pcs
LCD Panel Brightness NO
Bonding air bonding or optical bonding NO
Boards AD board with different signal connectors
PC boards with different systems and functions
for different application
Customized logo added
NO
Cables Signal connector PIN ID
Length
NO



  How do we work

  JFCVision's project customization process, professional 4k touchscreen display technology solution

Project Customization Process - 4k Touchscreen

  Full Optical Bonding &  Air bonding

  JFCVision can produce air bonding and optical bonding and can recommend the most suitable one for you according to your needs.

Full Optical Bonding:

Advantages:

1.Make sure absolute vacuum between LCD panel and Touch Panel,

no ash, no vapor, no vapor condensation caused by outdoor temperature.

2.Improve LCD display's resolution and brightness in Sunshine

3.Protect the LCD display surface from turning yellow caused by sunshine,

anti-shock, anti-shake, to improve display's lifetime in outdoor usages.

4.The structure is very slim, with nice appearance.

Application: Outdoor  touch screen display

Air bonding:

Advantages:

1.Simple process

2.Shorter delivery date

3.The structure is very slim, with nice appearance.

4.Competitive price for finished product.

Application: For clear, common, and static indoor environment









Air Bonding - 4k Touchscreen

Air Bonding - 23.8 inch 4k Touchscreen

  Cover Lens Surface Treatment

  JFC can perform AG, AR and AF processing on the surface of the touch screen glass cover according to customer requirements.

AG(Anti-glare):

Improve display effect:

1.Can reduce the interference of ambient light,

2.improve viewing angle and brightness of the display

 3.Reduce the reflection of the screen

 4.Coating technology making display panels easy on the eye by controlling light reflection

Anti-glare - 4k Touchscreen

Anti-reflection - 4k Touchscreen

AR (Anti-reflection):

1.Reduce the reflection and increase transmission on a surface      compared to the same surface in a blank state.

2.Make the image clear, the color is more beautiful, saturated

  AF(Anti-fingerprint):

1.Surface coated with anti-fingerprint oil

2.The anti-fingerprint effect means that fingerprints on the surface become very slightly.

3.Water, oil, and other liquids are difficult to adhere to the surface.

Application: touch monitor in resturant, outdoor touch display, ATM, POS system, etc.

Anti-fingerprint - JFCVision 4k Touchscreen



  Capacitive Touch Screen Accessories

  18.4-28 inch 4K touchscreen accessories, JFC can provide you with a complete solution

Board  Name Accessories Picture Cable  Name Accessories Picture
AD board:



AD board - Touch Screen Module

Inverter Cable

Inverter Cable - Touch Screen Module

Inverter:

Inverter - Touch Screen Module

LVDS Cable

LVDS Cable - Touch Screen Module

Keyboard:

Keyboard - Touch Screen Module

Backlight Cable

Backlight Cable - Touch Screen Module

 IR:

IR - Touch Screen Module

Keyboard Cable

Keyboard Cable - Touch Screen Module

   AD board:

    Supply drive solution to the LCD panel

    Interface: HDMI, DVI, VGA, USB, etc.

    Language:

    Chinese, English, French, German, Russian, Spanish, etc.



    Inverte:

    Stabilize the current and voltage

Touch Screen Module - JFCVison

  Application

  JFCVision 4K touch screens are mainly used in retail, POS, commercial display, outdoor highlighting and medical, etc

Touch Screen Module of Application

  Factory Overview

  JFCVision is factory specialized in capacitive touch LCD displays production development and marketing for more than 10 years

Factory Overview - Touch Screen Module

  Transport Packaging

  18.4-28 inch capacitive touch screen We use EPS plate and wooden box for safe packaging to ensure product safety


Bubble Pack

Bubble Pack for Packaging Touch Screen Module

Carton

Carton for Packaging Touch Screen Module


Waterproofing Film

(On the surface of the
wooden box)

Waterproofing Film for Packaging Touch Screen Module

EPS Plate

EPS Plate for Packaging Touch Screen Module

Wooden Box

Wooden Box for Packaging Touch Screen Module

Fragile Warning Label

Fragile Warning Label - Touch Screen Module

Packaging process video

23.8 inch 4k touch screen packaging process,

Secure packaging ensures the security of the 4k touch screen





  Warehouse Overview

  JFCVision's long-term stable supply of 10.1-65 inch capacitive touch screen

Warehouse Overview - JFCVision 4K Touchscreen
