USB Capacitive Touch Screen - JFC236CMSS.V0
USB Capacitive Touch Screen

USB Capacitive Touch Screen - JFC236CMSS.V0

Product Specification:
  • Model : JFC236CMSS.V0
  • Size : 23.6inch
  • Resolution : 1920(RGB)×1080 [FHD]
  • Brightness : 300 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 23.6 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 23.6inches (diagonal)
Resolution: 1920(RGB)×1080   [FHD]
Active Area: 521.28*293.22 mm (H*V)
Brightness: 300 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1000:1
Interface: 30 pins   LVDS (2 ch, 8-bit)
Frequency: 60Hz
Backlight Lifetime: 40K hours
Voltage input: 5.0V (Typ.)
LED driver:  Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 561.2*341 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50 °C
Storage Temperature  -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

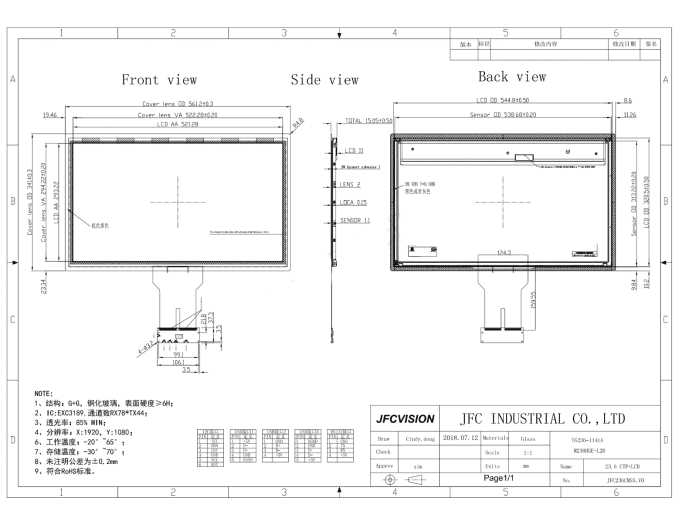

Mechanical Drawings:

23.6 inch USB Capacitive Touch Screen

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
