10.1 inch PCAP Touch Screen - JFC101CFYS.V0
10.1 inch PCAP touch screen

10.1 inch PCAP Touch Screen - JFC101CFYS.V0

Product Specification:
  • Model : JFC101CFYS.V0
  • Size : 10.1 inch
  1. Product Details
Technical Parameter
Touch Point:  10(win7 and win8)
Cover lens Thickness: 2.0mm
Sensor glass Thickness: 0.55mm
OCA Thickness: 0.2mm
Total Thickness: 2.75mm
Sensor Process: Print Process(ITO Pattern+Matal Line)
Input voltage: 3.5 V~5.5V. Typical 5V
Transmittance: >85%
Surface hardness: >6H
Relative Humidity: 95% at 60℃,RH Non-condensing
Storage environment: -30℃~+80℃,≦90%RH
Dimension Tolerance: ±0.2mm
Interface: USB

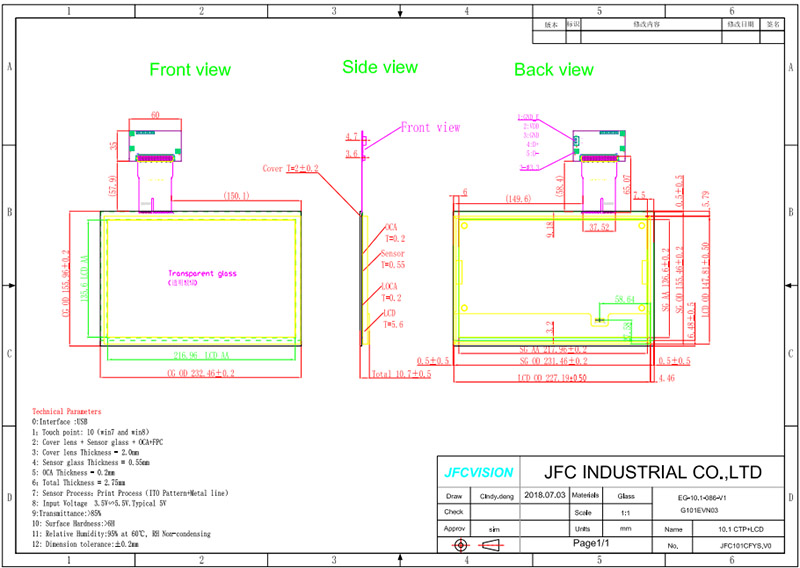

Mechanical Drawings

10.1 inch PCAP Touch Screen
