18.5 inch PCAP Touch Panel for Touch Screen - JFC185CFSS.V0
18.5 inch PCAP touch panel

18.5 inch PCAP Touch Panel for Touch Screen - JFC185CFSS.V0

Product Specification:
  • Model : JFC185CFSS.V0
  • Size : 10.1 inch
  1. Product Details
Technical Parameter
Touch Point:  10(win7 and win8)
Cover lens + Sensor glass + OCA+FPC
Cover lens Thickness: 3mm
Sensor glass Thickness: 0.7mm
OCA Thickness: 0.2mm
Total Thickness: 3.9mm
Sensor Process: Print Process(ITO Pattern)+laser Ag(Metal line)
Input voltage: 3.5 V~5.5V. Typical 5V
Transmittance: >85%
Surface hardness: >6H
Relative Humidity: 95% at 60℃,RH Non-condensing
Dimension Tolerance: ±0.2mm
Interface: USB

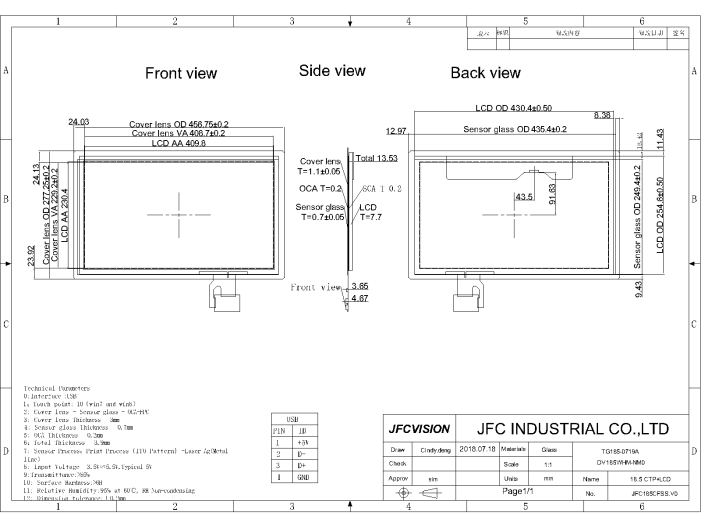

Mechanical Drawings
