27 inch Touch Screen Monitor - JFC270M.V0
27 inch touch screen monitor
27 touchscreen monitor
27 touchscreen monitor for kiosk
JFCVision 27 touchscreen monitor
JFCVision 27 inch touch screen monitor
 Full Optical Bonding Touchscreen

27 inch Touch Screen Monitor - JFC270M.V0

Product Specification:
  • Model : JFC270M.V0
  • Size : 27 inch
  • Resolution : 1920(RGB)×1080 [FHD]
  • Brightness : 300 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
JFCVison 27 inch Touch Screen Monitor
TFT LCD Panels
Size: 27 inches (diagonal)
Resolution: 1920*1080
Active Area: 597.6(H) × 336.15(V)mm
Brightness: 300 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Backlight Lifetime: 30K hours
Touch Specifications
Touch Type: Capacitive Touch
Multi Touch Points:  10 points
Active Touch Area: Same as LCD Panel's active area
Touch Control Interface: USB
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 6H
Touch Supportable: Finger, Glove or Passive Pen Input
Environment
Operation Temperature  -40 ~ 55 °C
Storage Temperature  -20 ~ 60 °C
Humidity: 10~90%  40ºC
Adhesive types of LCD Panel and Touch
Full Optical Bonding

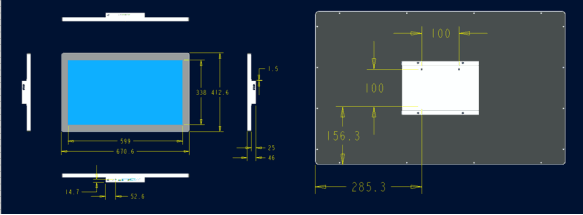

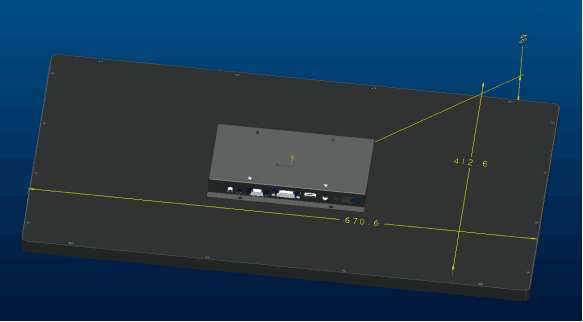

Mechanical Drawings:

optical bonding 27 inch touch screen monitor

27 inch touch screen monitor, 27 touchscreen monitor

Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating)
