High Brightness Capacitive Touch Screen Monitor - JFC238PHB15C

Product Specification:
  • Model : JFC238PHB15C
  • Size : 23.8 inch
  • Resolution : 1920*1080
  • Brightness : 1500 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
JFCVision High Brightness 23.8 inch Capacitive Touch Screen Monitor
TFT LCD Panels
Size:  23.8inches (diagonal)
Resolution: 1920*1080
Active Area: 535×313mm (H*V)
Brightness: 1500 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1000:1
Interface: LVDS
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 5V (Typ.)
LED driver: included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85%
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  -40 ~ 55 °C
Storage Temperature  -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing

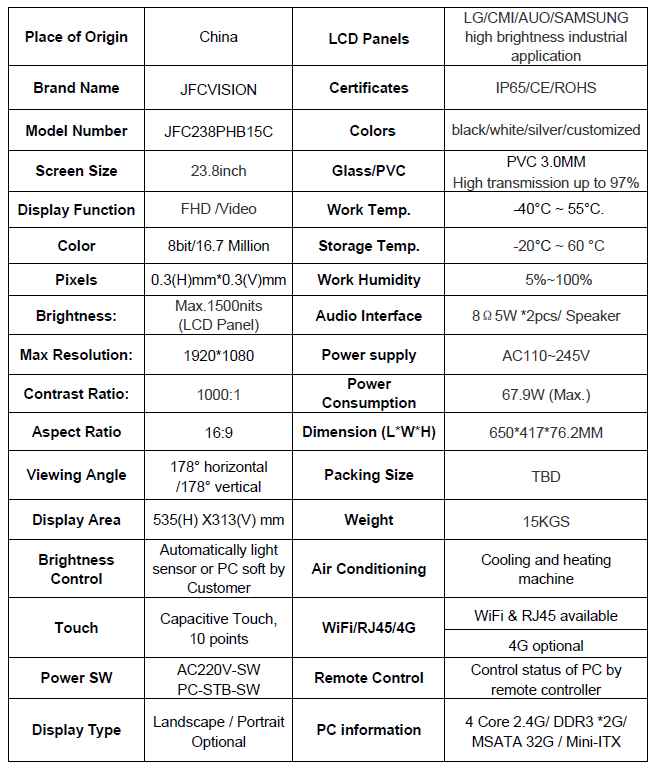

Monitor Specifications
capacitive touch screen monitor - JFC238PHB15C
Adhesive types of LCD Panel and Touch
Full Optical Bonding

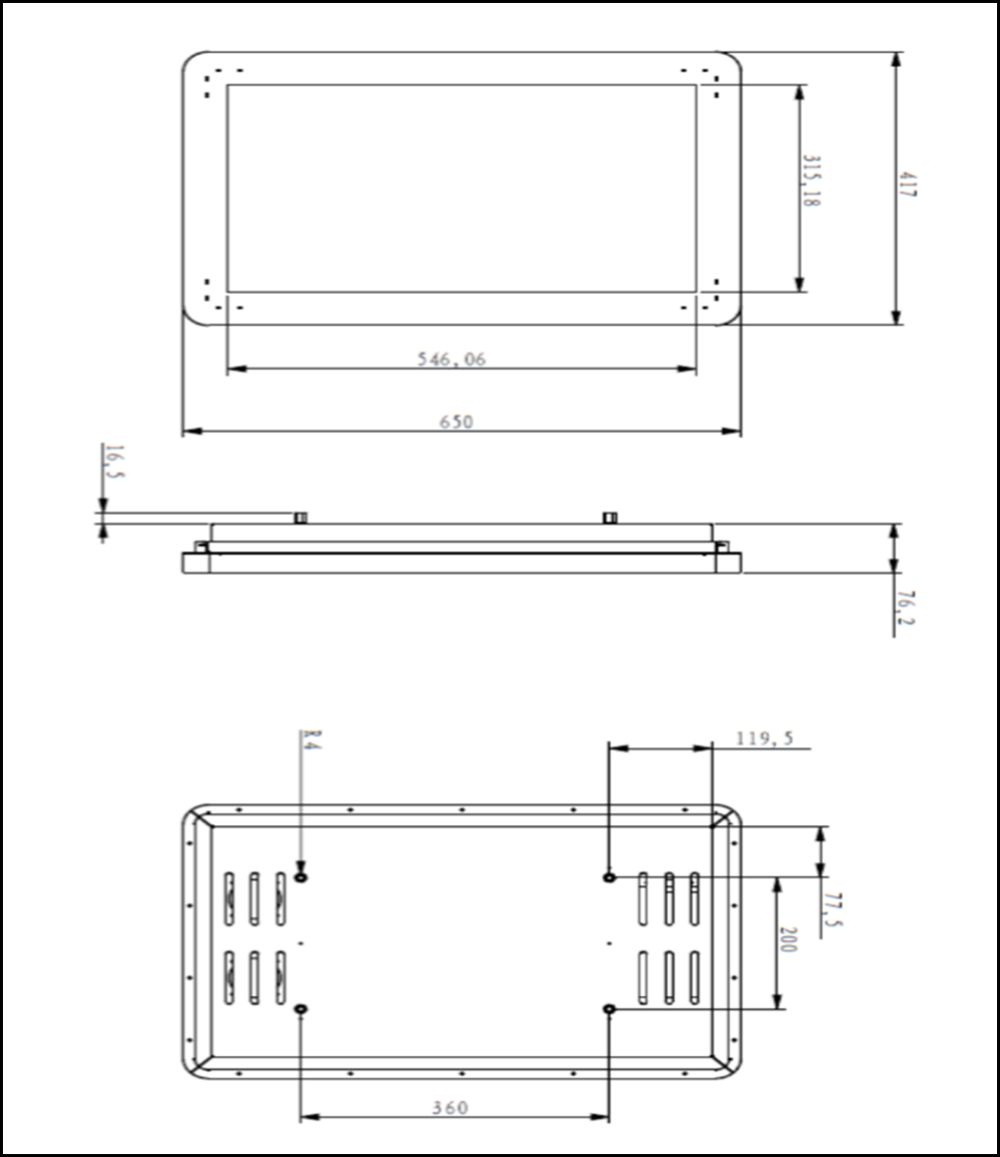

Mechanical Drawings:

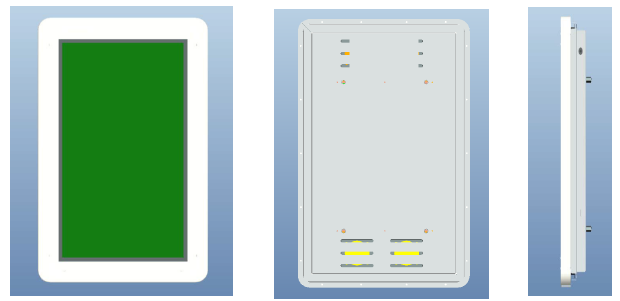

Interactive touch monitor - JFC238PHB15C
Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating
Warranty:
1). Warranty Period: 2 years from the date of shipping.
2). Warranty Exclusions:
*  Failure to adhere to the handling, storage, operating, assembly or other procedures and

     Parameters outlined in this delivery specification.
*  Accidental or purposeful abuse, neglect or acts of nature.
*  Breakage or physical scratches to the touch screen.


*  Other factors beyond the control of JFCVision
