10.1 inch Touch Panel, LCD Touch Screen Display

Product Specification:
  • Model : JFC101CMSS.V0
  • Size : 10.1 inch
  • Resolution : 1920*800
  • Brightness : 350 cd/m2 (Typ.)
  • Application : Commercial Display
  1. Product Details
  2. Download
JFCVision 10.1 inch LCD Touchscreen Features a Slim Design
TFT LCD Panels
Size: 10.1inches (diagonal)
Resolution: 1920*800
Active Area: 216.96*135.6mm (H*V)
Brightness: 350 cd/m2 (Typ.)
View Angle: 85/85/85/85(Typ.)(L/R/U/D)
Contrast Ratio: 800:1
Interface: LVDS (1 ch, 8-bit) , 40 pins
Frequency: 60Hz
Backlight Lifetime: 15K hours
Voltage input: 2.5V (Typ.)
LED driver: Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 231.82*149.19 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: ILI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Operation Temperature  -10 ~ 50°C
Storage Temperature  -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

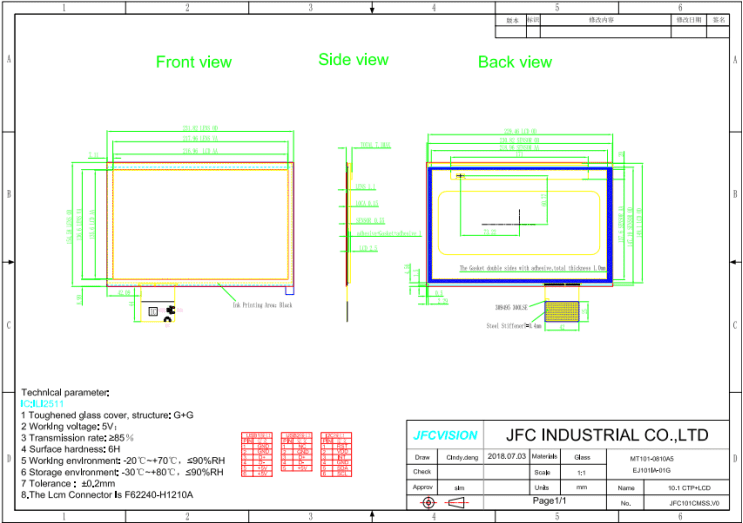

Mechanical Drawings:

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
