Product Specification:
  • Model : JFC121CFSS.V0
  • Size : 12.1 inch
  • Resolution : 1024*768(XGA)
  • Brightness : 500 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 12.1inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size:  12.1inches (diagonal)
Resolution: 1024*768(XGA)
Active Area: 245.76×184.32 mm (H*V)
Brightness: 500 cd/m2 (Typ.)
View Angle: 80/80/80/80(Typ.)(L/R/U/D)
Contrast Ratio: 700:1
Interface: LVDS (1 ch,6/8-bit)20Pin
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 3.3V (Typ.)
LED driver: included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 260.76*203.3 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  -30 ~ 85 °C
Storage Temperature  -30 ~ 85 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

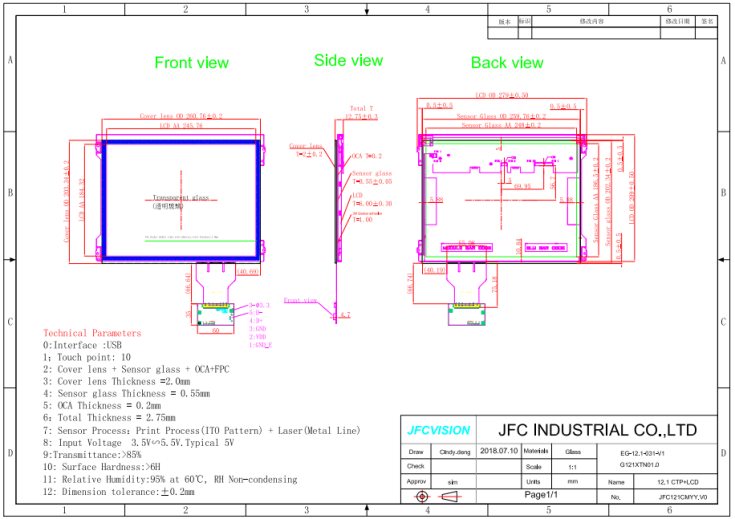

Mechanical Drawings:

12.1 inch LCD Touch Screen
