Touch Monitor
43 inch touch screen monitor 10 point FHD 1500 nit - JFC430HB15TM.V0
- Model : JFC430HB15TM.V0
- Size : 43 inch
- Resolution : 1920 * 1080
- Brightness : 1500 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Industrial & Commercial Grade Touch Screen Monitor
|
Specifications |
|||
|
Part number |
JFC430HB15TM.V0 |
Touch |
10 points touch |
|
Panel size |
43 inch |
Ccver lens |
AG (anti-glare) |
|
Resolution |
1920 * 1080 |
Systems Supportable |
Windows Android |
|
Display Colors |
16.7M |
Speaker |
3W 8Ωx2 |
|
Contrast Ratio |
1200 : 1 |
Signal Input |
DVI X 1，HDMI X 1，VGA X1，PC AUDIO X1， |
|
Brightness |
300 - 1500 nit |
Other |
EARPHONE X1 |
|
Viewing angle |
178°/178° |
Monitor Colour |
Black （customized） |
|
Hi-Tni |
>75 ℃ |
VESA wall-mounted |
400X400MM |
|
Driving Voltage |
AC 220V |
||
|
Average Power Consumption |
Between 60-110W, based on the intensity of sunshine on the day |
||
|
Display size |
941.18 × 529.42mm (with bracket) |
||
|
Monitor size |
1034.2 ×622.6 ×67mm（without bracket） |
||
|
Weight |
Approx. 35 Kg (without base) |
||
|
storage temp. |
-20ºC~60ºC |
||
|
Operating temp. |
-15ºC~50ºC |
||
|
MTBF |
≥50000hours |
||
Product Details
1. Brightness: 1500nit
The 43 inch touch screen monitor brightness is automatically adjusted between 300 and 1500 nit according to the brightness of the surrounding.
The high-brightness 43 inch touch screen monitor has built-in patented brightness compensation technology that maintains brightness for factory maintenance for 2 years.
2. LG Glass
LG LCD glass, industrial grade (industrial high-transparent panel), liquid crystal glass Hi-Tni> 75 ° C, no black spots under the direct sunlight, afterimage
3. Full HD display
1920*1080 Full HD 43 inch touch screen monitor, rich in color, and the picture is vivid. The display is anti-glare, which effectively reduces the problem of reflection, and the viewing and touch are more comfortable.
4. Touch function：10 points touch, precise touch
43 inch touch screen monitor surface adopts 7H tempered glass, full viewing angle, 10 points touches, sensitive touch, fast writing by touch pen or finger, smooth and accurate handwriting performance, safe and durable touch display, meeting the needs of efficient work
5. Automatic light control
Intelligent ambient photosensitive function, automatically adjust the LCD screen displaying effect according to the ambient brightness
6. Low power consumption
High-efficiency white LED backlight module, the ultra-low power consumption of Blu-ray technology brings high performance and ultra-stable working state of capacitive touch LCD screen;
Very low expectations, Touch monitor maximum power <110W

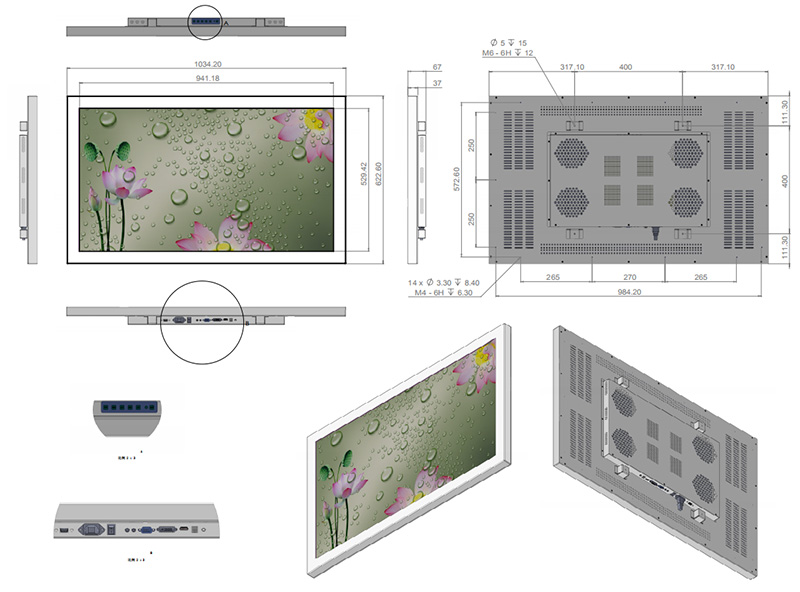

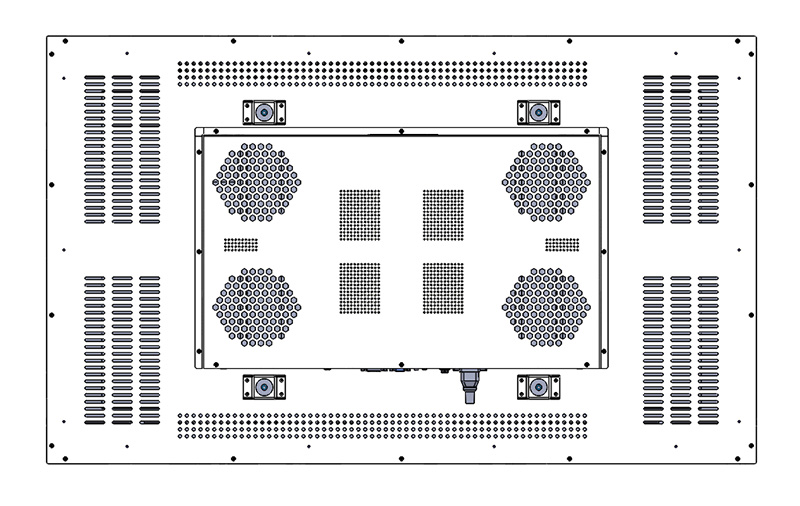

7. Mechanical Drawings
