43-55 inch High Brightness LCD Panel
Samsung High Brightness LCD Screens For Outdoor Advertising Display - LTI550HF04
- Model : LTI550HF04
- Size : 55 inch
- Resolution : 1920(RGB)×1080 (FHD)
- Brightness : 2500 cd/m2 (Typ.)
- Application : Digital Signage, Outdoor High Brightness
| Product Description |

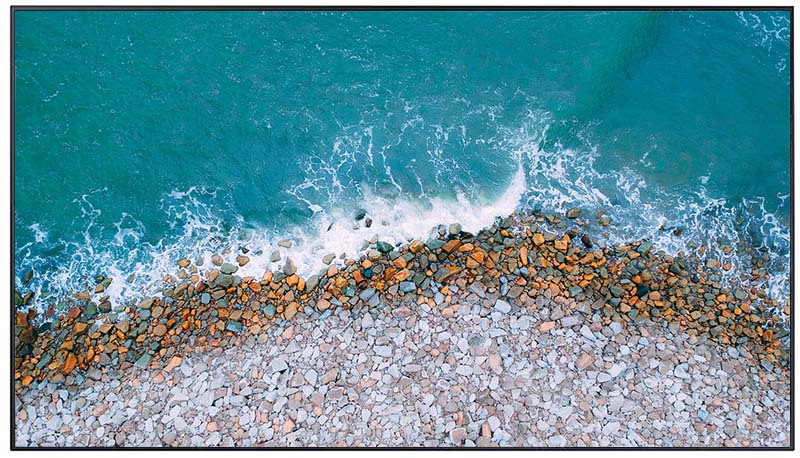

Samsung High Brightness LCD Screens For Outdoor Advertising Display - LTI550HF04
GENERAL DESCRIPTION
DESCRIPTION
LTI550HF04 is a color active matrix liquid crystal display(LCD) that uses amorphous silicon TFT(Thin FilmTransistor) as switching components.
This model is composed of a TFT LCD panel, a driver circuit, and a back-light unit.
This 55.0" model has a resolution of 1,920 x 1,080 pixels(16:9) can display up to 16.7 Million colors with the wide viewing angle of 89 or higher in all directions.
|

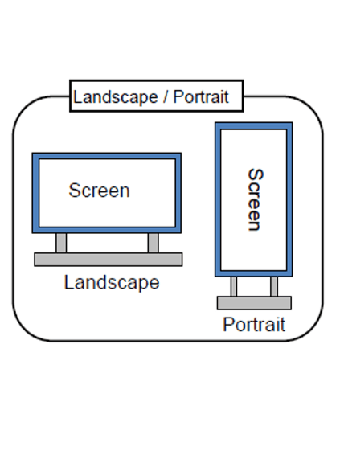

FEATURES High Brightness Panel (2.500nit)RoHS compliance(Pb-free) FHD(1,920X1,080) resolution(16:9)SVA(Super Vertical Align) modeHigh Tni(110*C) Liquid CrystalHigh speed response High contrast ratio, High aperture ratio with the wide color gamut wide viewing angle(t178) Landscape / Portrait type compatible LVDS(Low Voltage Differential Signaling) Interface(2pixel/clock)DE(Data Enable) mode Direct LED(Light Emitting Diode) BacklightLow power consumption Black Fog Mura Improvement Technology |
|
| Specifications | |
| Part Number | LTI550HF04 |
| Size | 55 inch |
| Resolution | 1920(RGB)×1080 (FHD) |
| Brightness | 2500 cd/m² (Typ.) |
| Interface Type | LVDS (4 ch, 10-bit), Connector, 92 pins |
| Response Time | 6 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Frequency | 120Hz |
| Surface | Glare (Haze 0%) |
| Application | Outdoor High Brightness, Digital Signage |
| Original Package | |
| Packing Form | EPS Cushion / Paper Box |
| Carton Size | 1475 mm(W) X 1150 mm(D) X 1008 mm(H) [With Pallet Plastic] |
| Customization | ||
| Item | Customization | MOQ |
| Touch panel | size, silk print, touch signal connector | MOQ is different based upon different sizes |
| Cover lense | hardness, thickness, sizes, shape, color | <21.5'', 200pcs ≥21.5'', 100pcs ≥32'', 50pcs |
| LCD Panel | Brightness | NO |
| Bonding | air bonding or optical bonding | NO |
| Boards | AD board with different signal connectors PC boards with different systems and functions for different application Customized logo added |
NO |
| Cables | Signal connector PIN ID Length |
NO |
You May Also Like?
| Panel Model | Panel Brand | Size | Brightness | Resolution | Frequency |
| LTI460HF01 | Samsung | 46 | 2500nit | 1920*1080 | 120Hz |
| LD490EPN-UKH1 | LG | 49 | 1500nit | 1920*1080 | 60Hz |
| LTI550HF04 | Samsung | 55 | 2500nit | 1920*1080 | 120Hz |
| LD750DGN-FKH1 | LG | 75 | 3000nit | 3840*2160 | 60Hz |
| LD750DGN-FKH3 | LG | 75 | 3000nit | 3840*2160 | 60Hz |
|
Production Workshop
|
|
Warehouse Overview |
|
Applications Digital Information Display(DID) (If the intent to use this product is for other purpose, please contact Samsung Display.) |
|
Warranty |
1. All panels’ grade is promised strictly same as original factory’s IIS standard.
2. All brand-new Panels’ electronic functions are guaranteed during warranty period of 1 year beginning with the invoice date.
3. We can do OEM of the High Brightness LCD module as required.
|
Why Choose Us？
|
1. Large Stock System:
We have our own warehouses in Shenzhen, and Hongkong, with comprehensive supplying network of LCD panels & open cells for LG, Samsung, AUO, CMO, and other brands.
2. Comprehensive Panel sources.
We have strong ability and system to seek for our customers the panels which have been end of production for a long time.
3. Professional acknowledgment of LCD panels industry to provide customers with effective advice.
We have been in original LCD panels industry for more than 10 years and know the main brands' LCD panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
4. During the warranty, if panels’ electronic functions problems occur, customers provide the photos to illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s electronic problem, we will take back the panels with problem and replace it with new panels. All freight will be taken by us.
