75 inch 4K High Brightness Sunlight Readable LCD Module - LD750DGN-FKH3
- Model : LD750DGN-FKH3
- Size : 75 inch
- Resolution : 3840×2160 [UHD]
- Brightness : 3000 cd/m2 (Typ.)

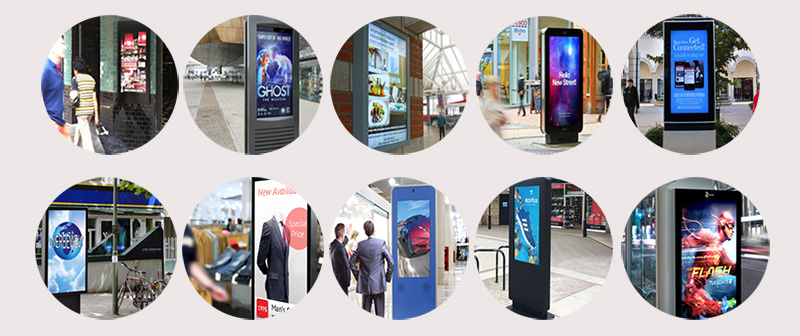

- Application : Digital Signage, Outdoor High Brightness
75 inch 4K High Brightness Sunlight Readable LCD Module
The LD750DGN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system.
The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode.
It has a 74.52 inch diagonally measured active display area with QWUXGA resolution (2160 vertical by 3840 horizontal pixel array).
Sub-pixels are constructed with Red, Green, Blue and White. Each pixel is divided into RGB or WRG or BWR or GBW or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.07Bilion colors. It has been designed to apply the 10-bit 8 Lane V by One interface.
It is intended to support Commercial Display where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.
|Interface Type||56 pins V-by-One 8 lane , Connector|
|Response Time||8 (Typ.)(G to G)|
|Viewing Angle||89/89/89/89 (Min.)(CR≥10)|
|Surface||Antiglare (Haze 3%), Hard coating (2H)|
|Application||Outdoor High Brightness, Digital Signage|
|Package quantity in one Pallet||5 pcs|
|Pallet Size||1980 mm(W) X 760 mm(D) X 1275 mm(H)|
|Touch panel||size, silk print, touch signal connector||MOQ is different based upon different sizes|
|Cover lense||hardness, thickness, sizes, shape, color||<21.5'', 200pcs
|Bonding||air bonding or optical bonding||NO|
|Boards||AD board with different signal connectors
PC boards with different systems and functions
for different application
Customized logo added
|Cables||Signal connector PIN ID
You May Also Like?
|Panel Model||Panel Brand||Size||Brightness||Resolution||Frequency|
1. All panels’ grade is promised strictly same as original factory’s IIS standard.
2. All brand-new Panels’ electronic functions are guaranteed during warranty period of 1 year beginning with the invoice date.
3. We can do OEM of the High Brightness LCD module as required.
Why Choose Us？

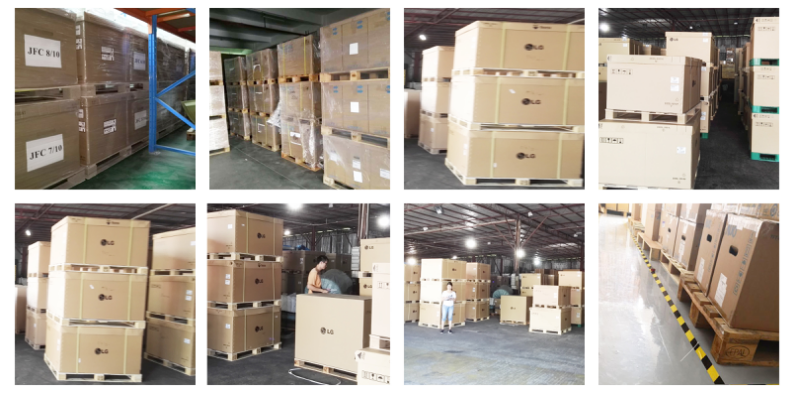

1. Large Stock System:
We have our own warehouses in Shenzhen, and Hongkong, with comprehensive supplying network of LCD panels & open cells for LG, Samsung, AUO, CMO, and other brands.
2. Comprehensive Panel sources.
We have strong ability and system to seek for our customers the panels which have been end of production for a long time.
3. Professional acknowledgment of LCD panels industry to provide customers with effective advice.
We have been in original LCD panels industry for more than 10 years and know the main brands' LCD panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
4. During the warranty, if panels’ electronic functions problems occur, customers provide the photos to illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s electronic problem, we will take back the panels with problem and replace it with new panels. All freight will be taken by us.
Honored to have your inquiry. We will reply you within 1 day. Your detailed information for requirement and application helpus to make a best quotation and engineer solution.
