15.6 inch PCAP Touch for Capacitive Touch Screen - JFC156CFYS.V0
15.6 inch PCAP touch

15.6 inch PCAP Touch for Capacitive Touch Screen - JFC156CFYS.V0

Product Specification:
  • Model : JFC156CFYS.V0
  • Size : 15.6 inch
Inquiry
  1. Product Details
Technical Parameter
Touch Point:  10(win7 and win8), (UART touch point:2 )
Cover lens +Sensor glass + OCA+FPC
Cover lens Thickness: 1.1mm
Sensor glass Thickness: 0.7mm
OCA Thickness: 0.2mm
Total Thickness: 2mm
Sensor Process: Print Process(ITO Pattern+Matal Line)
Input voltage: 3.5 V~5.5V. Typical 5V
Transmittance: >85%
Surface hardness: >6H
Relative Humidity: 95% at 60℃,RH Non-condensing
Operating Conditions:  -10~70℃
Storage Conditions:  -20~70℃
Dimension Tolerance: ±0.2mm
Interface: USB

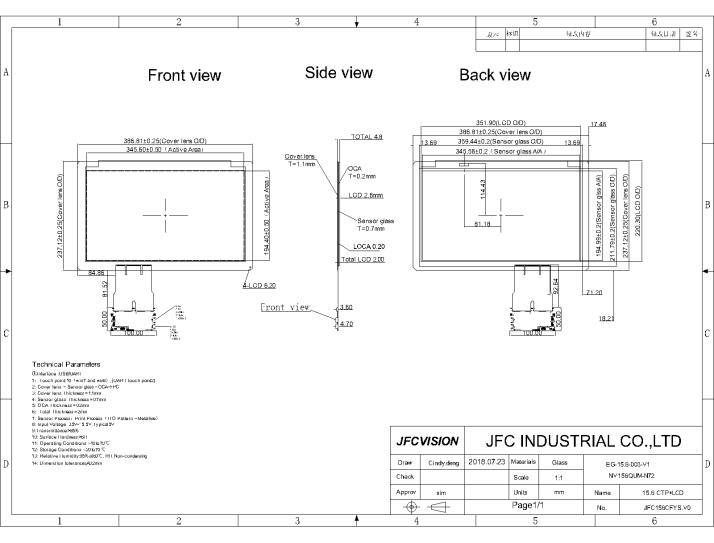

Mechanical Drawings

15.6 inch PCAP Touch
