19 inch Capacitive Bar LCD Panel JFC190CMYY.B3V5 for Amusement Machine

0

Published by JFCVision March 26,2019

Contact: Matthew

Country: USA

Date: Feb. 27, 2018



Project Process:

At beginning, the LCD panel customers needed was LM250WW1-SSA1. It has discontinued, for a newest and long-term project, the LCD panel which support continuously supplying is suggested.

Confirmed following parameters with the customers:

Size: 19inch

Resolution: 1920*360

Brightness: 300nit

Viewing angle: 89/89/89/89

Interface: LVDS

Application: amusement machine

Function: capacitive touch function (10 touch points)

Suggested DV190FBM-NB0 to the customers, they accepted.



On Mar. 1, 2018, 2 sets of DV190FBM-NB0+control board JFC2KBV59Q+cables were sent to customer for confirmation.

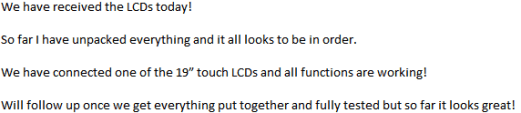

On Mar. 21, 2018, a good news from the customer:



Multi-touch screens



On Apr. 10, 2018, started to design the drawing of 19inch capacitive touch panel.

During the communication of drawing designing, the width of cover glass, the length of FPC, the position of FPC were revised according to customer’s requirement. And choose 3M bonding.

On Apr. 27, 2019, drawing was confirmed, started the production.

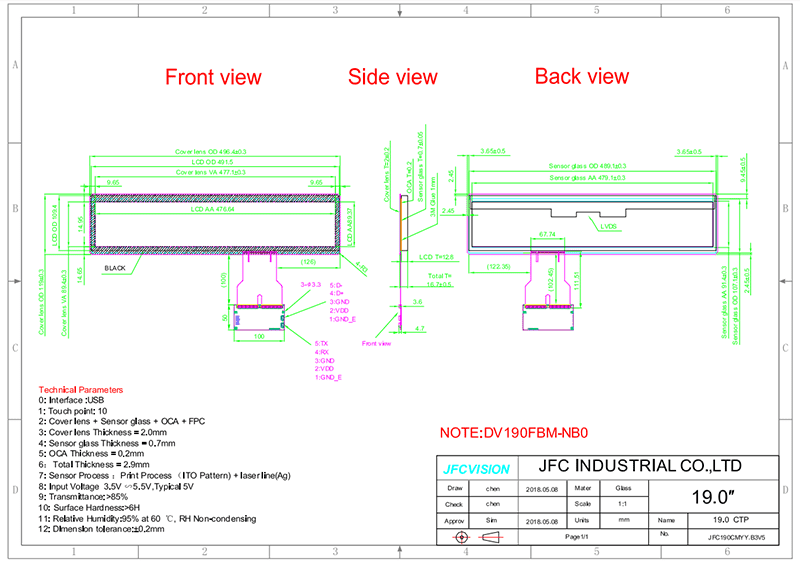

Drawing Designing

19inch capacitive touch panel



On June 1, 2019, 2 sets JFC190CMYY.B3V5+control board JFC2KBV59Q+cables were sent to customer for confirmation.

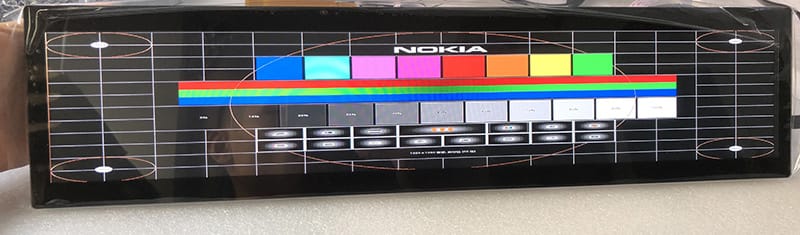

Touch Screen Test Picture

19 inch Capacitive Bar LCD Panel



On June 7, 2018, got customer’s feedback:



 19 inch Bar Panel



On July 27, 2018, customer request to replace the splash screen with their Logo in.

Yes, we can add the Logo that customers required to the driver software.



Total quantity we have sent to the customer: 204sets.



Obtain high evaluation from customer:

 19 inch LCD Panel
